I got my hands on a broken 3D scanner. I was happy to give it a try and see if I can return it to working condition. There’s some satisfaction in fixing things… š Alright, let’s see how that worked out!
The scanner
The unit has been developed by Matter and Form.Ā It’s a small company located in Canada, offering currently 2 products (second one, Bevel, had a successful Kickstarter campaign in 2015).
You can learn more about the scanner here:
https://matterandform.net/scanner
If you’d like to purchase one,Ā it’sĀ available on Amazon:
The problem
The unitĀ I got my hands on had an issue with the turntable. When attempting to do a scan, there would be grinding noise, and turntable wouldn’t rotate. Upon disassembly, I found out that there were 3 bearings missing at the bottom of the turntable – they provide support, and without them, there was a lot of movement in every direction preventing it from precise operation. I don’t know the prior history of this device, so I’m not exactly sure how that happened, but I suspectĀ this would be caused by exercising a lot of force on the turntable (either by scanning very heavy object, or dropping something on it).
Unit with the turntable removed:
I reached out to the customer support atĀ Matter and Form, described the issue, and was promptly offered the replacement part. That’s a great start!
The package arrived after about a week. Having waited for it, and being excited to finally give it a try, I proceeded with careful installation of the new turntable. The fitment is very tight, and there are 3 legs and 3 bearings that need to snap into the inside of the inner ring on the base.
Left – broken turntable, right – new one with bearings attached:
Well, the fitment is really very, very tight. That’s required for precise operation, but makes the assembly process quite tricky.
Unfortunately, during the installation, one of the bearings snapped off of the new turntable. I finished the installation with 2 out of 3 bearings in place, wondering if this will allow for a reliable operation. When testing, I came to conclusion that it’s unsatisfactory, not only did the turntable show a bit of skewĀ at some angles while rotating because of the missing bearing, but it became clear that the wear and tear on the original base was getting in the way of smooth operation. The base must’ve gotten damaged at the time when theĀ turntable got broken.
I contacted the support again, and was offered larger set of replacement parts (turntable along with the base assembly).Ā I’d like to reiterate that again, the Matter and Form support is awesome. It’s not being outsourced, and instead you get to talk to people working directly for the company. They’re very knowledgeable, responsive and really helpful.
Another week has passed and I proceeded to unpack the second package.
The disassembly was more involving this time, but support provided very exhaustive instructions, which helped make sure that everything goes smoothly.

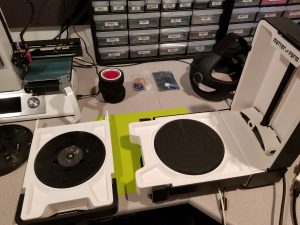

New replacement base on the left:
And original base removed:
The replacement came with turntable already installed on the base. This helps tremendously, as it eliminates the most risky part of the assembly process (which puts force on the bearings).

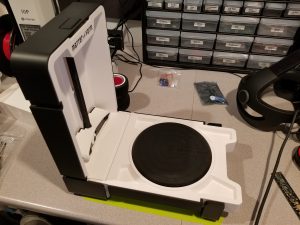

And the scanner all back in one piece:
So, did it work?
It did! Works like a brand new unit, operates very smoothly, and after a quick calibration provides a nice quality point clouds that can then be turned into meshes.

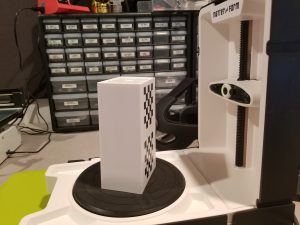

IĀ began with a calibration, using provided test element:
And then it was time to start scanning.
Here’s an example piece that I chose because of the complex structure of the sides. It’s a pen holder that looks like stacked 3 car tires, with a detailed thread pattern. Seems like a good test to check the level of detail that can be achieved.
Scan in progress:
Completed scan, before cleaning up:
After the cleanup, while generating the mesh:
And the final result:
The resulting mesh was satisfactory. Note that we’re not only getting the mesh, but also textures. This is where even ambient light really helps.
This was just the first scan, I’m sure that with a bit of experimentation even better results can be achieved.
How would I rate this scanner?
Briefly – I like the idea of a compact device that can be folded and stored when not in use, the results are satisfactory, and I have to give a shout out to the great and responsive customer support. Downsides include construction made completely out of plastic (some parts feel flimsy, e.g. the power switch) and limitations of the current technology (long scanning times, precision).
Pros:
- Small form factor, foldable, doesn’t occupy much space,
- Great customer support,
- Simple to use software,
- Depending on the preparation (ambient light, etc.) has potential to provide niceĀ results,
- Price not that far from reasonable range š ($499 at this time),
Cons:
- Noisy operation – the threaded rod for Z axis is made of plastic, and there seems to be some wiggle that contributes to the noise,
- A bit flimsy construction – the plastics are sometimes squeaky, power buttonĀ requires a lot of force andĀ resonates on press. The hinge where scanner opens and folds doesn’t have anything to lock it in position – IĀ worry that this may affect the scanning precision. It’s a bit disappointing that pretty much whole device is made out of plastic. Compare that to the construction of Monoprice Select Mini, great 3D printer for just over $200 made almost completely out of metal.Ā I understand the cost of various components is different between 3D printer and scanner, but I’d really like to see stronger construction, especially in the critical places that are so prone to failure right now (bearing mounts under the turntable).
- Very long scan times – that seems to be the limitation of current generation of 3D scanners. The number of scans, at different heights, from different angles, quickly creates a large set of measurements, and that takes time. ProbablyĀ being able to make scans at multiple heights at once (multiple sensors at different height) would cut down the times significantly, but also increase the cost of the hardware.
- Quite pricey after all,
To learn more, visitĀ https://matterandform.net/
I also recommend checking out the “DOs and DON’Ts“, as well as a tutorial video for setting up the scanner.
This concludes my first experience with a dedicated 3D scanner. There’s a still room for improvements, and this technology seems to be lagging behind 3D printing (I suspect that it’s mostly due to the popularity of 3D printing which thus receives more focus, as I wouldn’t think that scanning is facing greater technical challenges in comparison).
I know there are various DIY solutions built with the use of Kinnect, but I have yet to try those. Then there are few other products at a slightly higher price point that Matter and Form (like this one from MakerBot). And I’ve never really gotten great results with apps available for smartphones/tablets, that work by taking multiple photos at various angles and then processing them to create a mesh…
Do you have experience with hobby-grade 3D scanners? Let me know!
I have purchased a used Scanner, however it appears to have no power. I have tested the power supply (Good), and the button on the scanner itself lights up. No other sound or movement. How did you disassemble the unit? I have removed the 3 hex screws but am at a loss from there. Thanks for the help.
JL
Hey John,
So sorry for delayed response – things have been really busy…
I’m going to send you an e-mail with information to hopefully help with your problem – stay put š
donaldmarcelo1@gmail.com
hi
I have purchased a used Scanner, however it appears to have no power. I have tested the power supply (Good), and the button on the scanner itself lights up. No other sound or movement. How did you disassemble the unit? I have removed the 3 hex screws but am at a loss from there. Thanks for the help. can you send instructions
best regards
Hi Marcelo, I’m going to send a couple photos directly to your e-mail, hoping it will help with the disassembly. The only reason I’m not directly posting those here is to respect the request from Matter Form (I’ve been asked not to share publicly their materials). Hope it helps!
Hi Bogdan,
I’m running into a similar problem like you and was hoping that you could also email me the disassembly instructions.
Hey ScanGuy!
I’ve been asked not to share the original servicing manual (I’m just trying to respect the request, Matter Form’s support has been super helpful! š ) but I e-mailed you information that I hope you’ll find useful. Let me know if you still have any questions!
Hi Bogdan, I am also having issues with my turn table. Could you send me the info as well? Thanks for your help! Svtcobra2010@aol.com
Hey Trevor, I sent you an e-mail with some instructions that I hope could help!
Bogdan, have you any experience with the z-axis? mine goes up when scanning as expected, but now ceases to return to the bottom upon completion. This results in z-axis homing to the last scanned height, which of course is unsustainable and when it reaches the top it grinds as it tries to continue higher.
Unfortunately I didn’t see that happen and can’t share my personal experience from addressing this issue… I also no longer have access to this scanner š I’d recommend reaching out directly to Matter and Form’s support – they were very responsive and assisted quickly when I contacted them in the past. Good luck!
Hi,
I seem to have a damage camera. When a connect it to the computer I get a black screen with cero image. Is there any chance to fix the camera?
Hi Mauricio,
Did you have a chance to check out the camera troubleshooting tips provided by Matter and Form on their website? Please see:
– https://matterandform.zendesk.com/hc/en-us/articles/360050038732-Windows-10-can-t-load-the-camera-driver
– https://matterandform.zendesk.com/hc/en-us/articles/360045834231-Can-t-connect-or-calibrate-Using-Windows-10-Check-your-Windows-camera-privacy-settings-
If that doesn’t resolve the issue, I’d recommend reaching out to their support.
I no longer have the scanner, and haven’t encountered similar issue myself…
Hope this helps, good luck!
